Hydraulic Winches

WINCHMAX HYDRAULIC Z SERIES 20000 WNCH 24v TWIN WIRELESS CONTROLS

AU $1,799.00

20,000LB (9072KG) WINCHMAX Z HYDRAULIC WINCH

25M X 14MM STEEL ROPE 24V TWIN WIRELESS REMOTE CONTROL

Includes full 24v wired/wireless control system, pipes and connectors. Integral roller fairlead.



Ideal for recovery trucks & trailers 7.5T+, industrial, commercial & agricultural



FEATURES

• 20000lb (9072kg) straight-line pull Z series hydraulic winch (24v controls)
• Latest technology long-range combination wireless remote controls, twin handsets.
• Socket and wiring harness for wander lead connection (wireless back-up)
• Ultra-tough three-stage gearbox with hardened steel gears.
• Casing machined from billet steel for maximum impact protection.
• 25m x 14mm galvanised steel wire rope.
• Through-drum rope attachment with grub screw clamp for maximum security.
• 1/2 Inch grade 70 forged clevis hook with safety catch, zinc plated for corrosion resistance and hand saver.
• Heavy-duty 4-way roller fairlead integrated to frame, no additional mounting plate required.
• Sliding ring gear freewheel clutch.
• 24V electrically operated CETOP 3 (NG6) solenoid operated directional valve control.
• Hydraulic hose assemblies 1.25m long (x4) fitted with 18 x 1.5mm threaded fittings.
• High tensile fixing bolt kit.
• Heavy duty & built to last - gross weight 65kg.
• CE certified & built to ISO9001 quality management system requirements.



Single Line Rated Pull	20,000lb (9,072kg)
Motor	Hydraulic
Control	Remote switch, 4.5m lead, in & out
Gear Train	3 stage planetary
Gear Reduction Ratio	32:1
Clutch	Sliding ring gear
Braking Action	Automatic
Drum Size	Diameter 88mm Length 222mm
Drum Finish	Black, painted.
Cable	25m x 14mm Galvanised Steel Wire Rope
Hook	Clevis Hook 1/2-inch, Zinc Plated
Fairlead	4-Way roller fairlead
Flow	50-60 L/min
Pressure	10.8Mpa (108 Bar)
Pressure Hose Connections	18mm/1.5mm
Winch Finish	Original Orange powder coated
Weight (GW)	65kg (143lb)
Overall Dimensions (LxWxH)	548 x 196 x 249mm
Mounting Bolt Pattern	10.00” ±0.015” x 4.50” ±0.010” (254 x 114.3mm)
No Load Line Speed	6.5m/min (21.3 ft/min)



Layer Rated	Line pull (lb)	Pull per layer (kg)	Line speed (m/min)
1	20,000	9,072	4.24
2	17,860	8,118	4.75
3	16,130	7,332	5.26
4	14,710	6,686	5.77



 FREIGHT

FREIGHT TO COMMERCIAL ADDRESS OR DEPOT PICK UP.

.

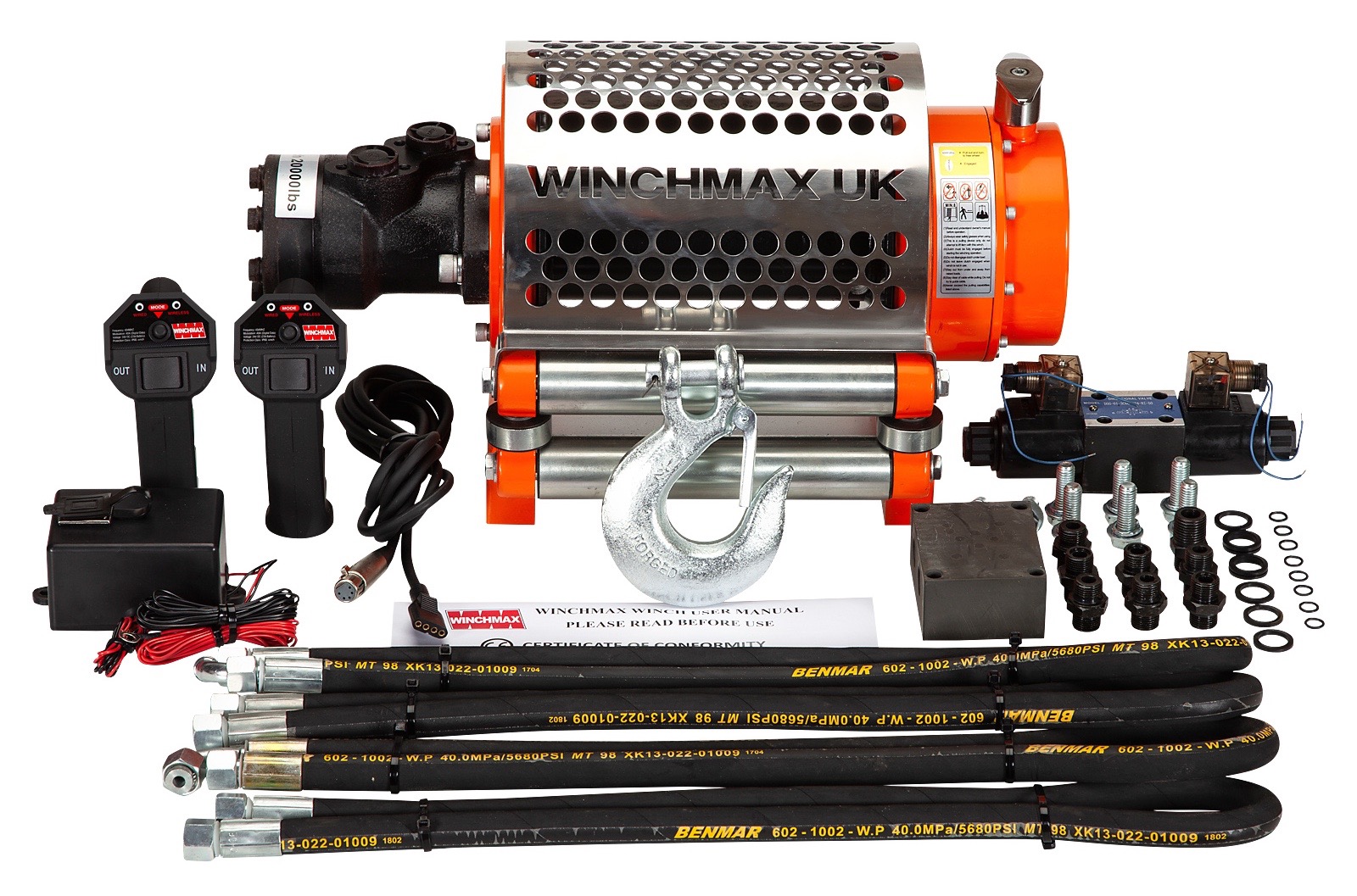

WINCHMAX HYDRAULIC Z SERIES 20000 WNCH 12v TWIN WIRELESS CONTROLS

AU $1,799.00





20,000LB (9072KG) WINCHMAX Z HYDRAULIC WINCH

25M X 14MM STEEL ROPE 24V TWIN WIRELESS REMOTE CONTROL

Includes full 12v wired/wireless control system, pipes and connectors. Integral roller fairlead.



Ideal for recovery trucks & trailers 7.5T+, industrial, commercial & agricultural



FEATURES

• 20000lb (9072kg) straight-line pull Z series hydraulic winch (24v controls)
• Latest technology long-range combination wireless remote controls, twin handsets.
• Socket and wiring harness for wander lead connection (wireless back-up)
• Ultra-tough three-stage gearbox with hardened steel gears.
• Casing machined from billet steel for maximum impact protection.
• 25m x 14mm galvanised steel wire rope.
• Through-drum rope attachment with grub screw clamp for maximum security.
• 1/2 Inch grade 70 forged clevis hook with safety catch, zinc plated for corrosion resistance and hand saver.
• Heavy-duty 4-way roller fairlead integrated to frame, no additional mounting plate required.
• Sliding ring gear freewheel clutch.
• 12V electrically operated CETOP 3 (NG6) solenoid operated directional valve control.
• Hydraulic hose assemblies 1.25m long (x4) fitted with 18 x 1.5mm threaded fittings.
• High tensile fixing bolt kit.
• Heavy duty & built to last - gross weight 65kg.
• CE certified & built to ISO9001 quality management system requirements.







 FREIGHT

FREIGHT TO COMMERCIAL ADDRESS OR DEPOT PICK UP.

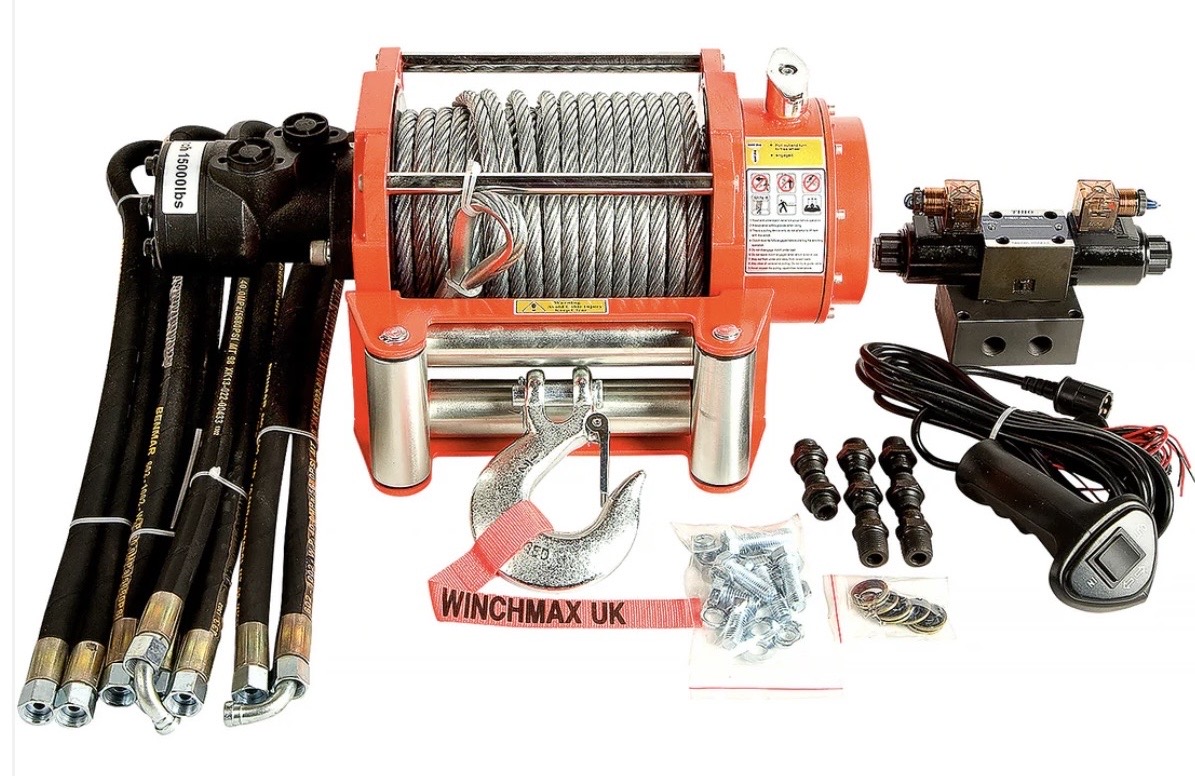

WINCHMAX HYDRAULIC RECOVERY WINCH 15000LB (6804KG) WITH 24V CONTROLLER

AU $1,499.00

15,000LB (6,804KG) WINCHMAX HYDRAULIC WINCH, STEEL ROPE, FULL CONTROL SYSTEM

Includes full 24v wired control system, pipes and connectors



Ideal for recovery trucks & trailers 7.5T+, industrial, commercial & agricultural



FEATURES

• 15,000lb (6,804kg) straight line pull.
• Ultra-tough three-stage gearbox with hardened steel gears.
• The winch casing is machined from billet steel for maximum impact protection.
• 25m x 12mm galvanised steel wire rope.
• New through-drum rope connection with grub screw clamp for ultra-secure rope attachment to drum.
• 1/2 Inch grade 70 forged Clevis hook with safety catch, zinc plated for corrosion resistance and hand saver.
• Tough four roller fairlead with zinc plated rollers.
• Sliding ring gear free-wheel clutch.
• 24v electrically operated CETOP 3 (NG6) solenoid operated directional valve control.
• Compatible with the full WINCHMAX range of wireless remote controls.
• Big grip controller for power in/out with extra-long 4.5m wander lead.
• Wander lead wiring harness and socket for connection to the solenoid valve.
• Hydraulic hose assemblies 1.25m long (x4) fitted with 18 x 1.5mm threaded fittings.
• High tensile fixing bolt kit.
• Heavy duty & built to last - gross weight 70kg.
• CE certified & built to ISO9001 quality management system requirements.



Single Line Rated Pull	15,000lb (6,804kg)
Motor	Hydraulic
Control	24v CETOP3
Gear Train	3 Stage Planetary
Gear Reduction Ratio	32:1
Clutch	Sliding Ring Gear
Braking Action	Automatic
Drum Size	Diameter 88mm Length 222mm
Drum Finish	Black, painted
Cable	25m x 12mm Steel Wire Rope
Hook	Clevis hook 1/2-inch, zinc-plated
Fairlead	4 Roller Fairlead
Flow	50-60 l/min
Pressure	10.8Mpa (108 Bar)
Pressure Hose Connections	18mm/1.5mm
Motor to Pipe Union	1/2” BSPT x 18mm adaptor
Winch Finish	Original Orange powder-coated
Weight (GW)	62kg (136lb)
Dimensions (LxWxH)	548 x 196 x 249mm
Mounting Bolt Pattern	10.00in ± 0.015in in x 4.50in ± 0.010in in (254 x 114.3mm)
No Load Line Speed	6.5m/min (21.3 ft/min)



Layer Rated	Line pull (lb)	Pull per layer (kg)	Line speed m/min
1	15000	6780	4.81
2	12100	5470	5.96
3	10100	4570	7.12
4	8800	3980	8.27

FREIGHT

TO COMMERCIAL ADDRESS OR DEPOT PICKUP

*

WINCHMAX HYDRAULIC RECOVERY WINCH 15000LB (6804KG) WITH 12V CONTROLLER

AU $1,499.00

 15,000LB (6,804KG) WINCHMAX HYDRAULIC WINCH, STEEL ROPE, FULL CONTROL SYSTEM

Includes full 12V wired control system, pipes and connectors



Ideal for recovery trucks & trailers 7.5T+, industrial, commercial & agricultural



FEATURES

• 15,000lb (6,804kg) straight line pull.
• Ultra-tough three-stage gearbox with hardened steel gears.
• The winch casing is machined from billet steel for maximum impact protection.
• 25m x 12mm galvanised steel wire rope.
• New through-drum rope connection with grub screw clamp for ultra-secure rope attachment to drum.
• 1/2 Inch grade 70 forged Clevis hook with safety catch, zinc plated for corrosion resistance and hand saver.
• Tough four roller fairlead with zinc plated rollers.
• Sliding ring gear free-wheel clutch.
• 12v electrically operated CETOP 3 (NG6) solenoid operated directional valve control.
• Compatible with the full WINCHMAX range of wireless remote controls.
• Big grip controller for power in/out with extra-long 4.5m wander lead.
• Wander lead wiring harness and socket for connection to the solenoid valve.
• Hydraulic hose assemblies 1.25m long (x4) fitted with 18 x 1.5mm threaded fittings.
• High tensile fixing bolt kit.
• Heavy duty & built to last - gross weight 70kg.
• CE certified & built to ISO9001 quality management system requirements.



Single Line Rated Pull	15,000lb (6,804kg)
Motor	Hydraulic
Control	12v CETOP3
Gear Train	3 Stage Planetary
Gear Reduction Ratio	32:1
Clutch	Sliding Ring Gear
Braking Action	Automatic
Drum Size	Diameter 88mm Length 222mm
Drum Finish	Black, painted
Cable	25m x 12mm Steel Wire Rope
Hook	Clevis hook 1/2-inch, zinc-plated
Fairlead	4 Roller Fairlead
Flow	50-60 l/min
Pressure	10.8Mpa (108 Bar)
Pressure Hose Connections	18mm/1.5mm
Motor to Pipe Union	1/2” BSPT x 18mm adaptor
Winch Finish	Original Orange powder-coated
Weight (GW)	62kg (136lb)
Dimensions (LxWxH)	548 x 196 x 249mm
Mounting Bolt Pattern	10.00in ± 0.015in in x 4.50in ± 0.010in in (254 x 114.3mm)
No Load Line Speed	6.5m/min (21.3 ft/min)



Layer Rated	Line pull (lb)	Pull per layer (kg)	Line speed m/min
1	15000	6780	4.81
2	12100	5470	5.96
3	10100	4570	7.12
4	8800	3980	8.27

FREIGHT

TO COMMERCIAL ADDRESS OR DEPOT PICKUP

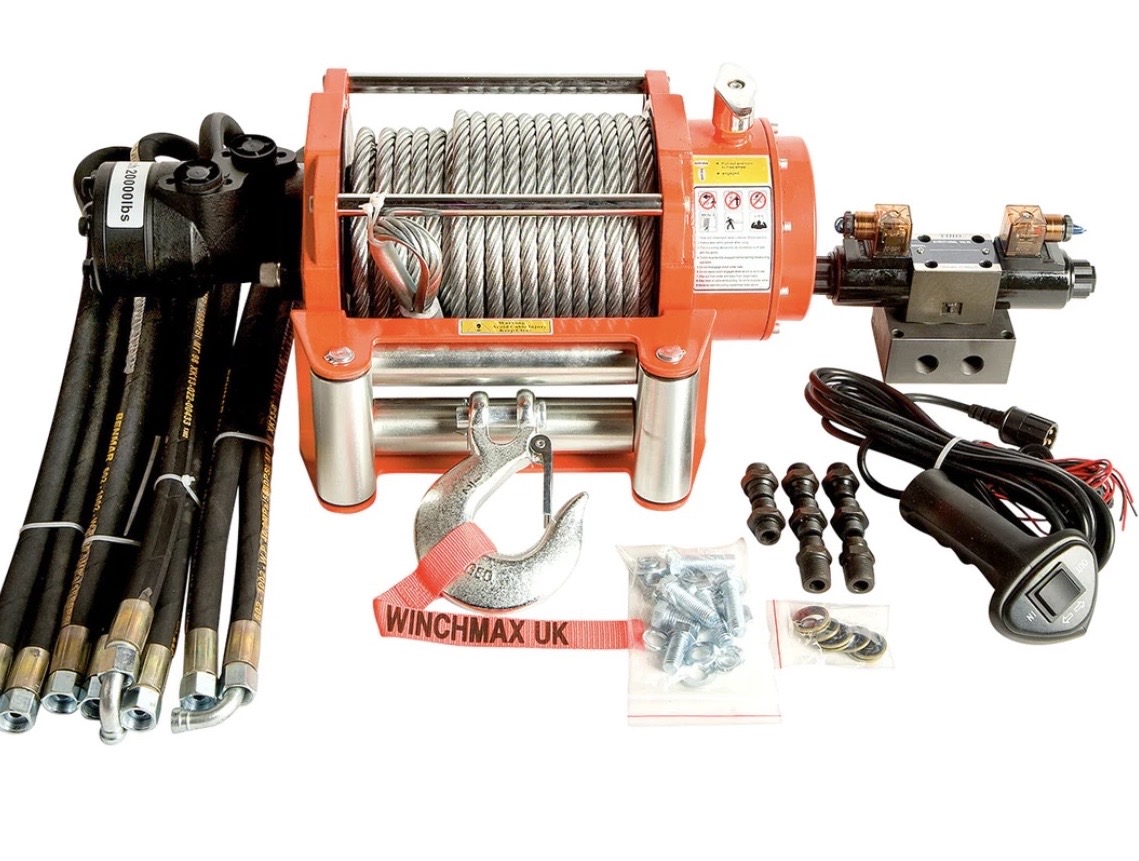

WINCHMAX HYDRAULIC 20000LB RECOVERY WINCH WITH 24V CONTROLLERS

AU $1,699.00

20,000lb (9072kg) WINCHMAX Hydraulic Winch

 Steel Rope, full Control System
Includes full 24v wired/wireless control system, pipes and connectors

Ideal for recovery trucks & trailers 7.5T+, industrial, commercial & agricultural



Features

·       20,000lb (9,072kg) straight-line pull hydraulic winch (24v controls)

·       Ultra-tough three-stage gearbox with hardened steel gears.

·       Casing machined from billet steel for maximum impact protection.

·       25m x 14mm galvanised steel wire rope.

·       Through-drum rope attachment with grub screw clamp for maximum security.

·       1/2 Inch grade 70 forged clevis hook with safety catch, zinc plated for corrosion resistance and hand saver.

·       Tough four roller fairlead with zinc plated rollers.

·       Sliding ring gear free-wheel clutch.

·       24V electrically operated CETOP 3 (NG6) solenoid operated directional valve control.

·       Compatible with the full WINCHMAX range of wireless remote controls.

·       Big grip controller for power in/out with extra-long 4.5m wander lead.

·       Wander lead wiring harness and socket for connection to the solenoid valve.

·       Hydraulic hose assemblies 1.25m long (x4) fitted with 18 x 1.5mm threaded fittings.

·       High tensile fixing bolt kit.

·       Heavy duty & built to last - gross weight 70kg.

·       CE certified & built to ISO9001 quality management system requirements.



•

•



FREIGHT

FREIGHT IS TO COMMERCIAL DELIVERY ADDRESS OR DEPOT PICK UP.
