24 Volt Winches

WINCHMAX 17000LB 24V ELECTRIC WINCH DYNEEMA SYNTHETIC ROPE WITH WIRELESS REMOTES

AU $1,299.00

 WINCHMAX

 17,000LB (7,711KG) 24V ELECTRIC RECOVERY WINCH

 25M X 13MM  DYNEEMA ROPE, TWIN WIRELESS REMOTE CONTROL



Ideal for recovery trucks and 4x4s over 3.5T



FEATURES

·       17,000lb (7,711kg) straight-line pull 12v electric winch.

·       Latest technology long-range wireless remote controls, twin handsets.

·       Super powerful 24v 6.8hp/5.1kw series wound electric motor.

·       Massive ultra-tough three-stage gearbox with hardened steel gears.

·       Motor and gearbox casing machined from billet steel for maximum impact protection.

·       25m x 13mm Dyneema SK75 multi-strand synthetic rope.

·       New through-drum rope connection with grub screw clamp for ultra-secure rope attachment to drum.

·       Orange competition hook with safety catch and hand saver.

·       Aluminium hawse fairlead. Precision CNC milled with laser-etched WINCHMAX branding.

·       Heavy-duty one-piece solenoid, latest design, ultra-reliable, IP67 waterproof.

·       Big grip controller for power in/out with extra-long 4.5m wander lead.

·       Sliding ring gear freewheel clutch.

·       High tensile fixing bolt kit.

·       Strong WINCHMAX branded cover to protect from water and road grime.

·       Heavy-duty & built to last - gross weight 50kg.

·       CE certified & built to ISO9001 quality management system requirements.



Single Line Rated Pull	17,000lb (7,692kg)
Motor	24v 6.8hp/5.1kw, series wound
Control	Remote switch, 4.5m lead, in and out
Gear Train	3 stage planetary
Gear Reduction Ratio	358:1
Clutch	Sliding ring gear
Braking Action	Automatic in the drum
Drum Size	Diameter 85mm (3.4") Length 224mm (8.82”)
Drum Finish	Black, painted
Cable	25m x13mm Dyneema SK75 synthetic rope
Hook	Competition hook with safety catch, orange
Fairlead	Aluminium hawse
Battery	Recommended 650CCA minimum for winching
Battery Leads	2 gauge, 1.83m (72”) 35mmsq - 6.5mm Diameter
Winch Finish	Original Orange powder coated
Weight (GW)	50kg (110lb)
Overall Dimensions (LxWxH)	555 x 196 x 249mm
Mounting Bolt Pattern	10.00” ±0.015" x 4.50” ±0.010" (254 x 114.3mm)
Motor Current	65-500A
No Load Line Speed	7.28m/min (23.9 ft/min)









FREIGHT

 TO COMMERCIAL BUSINESS ADDRESS OR DEPOT PICKUP

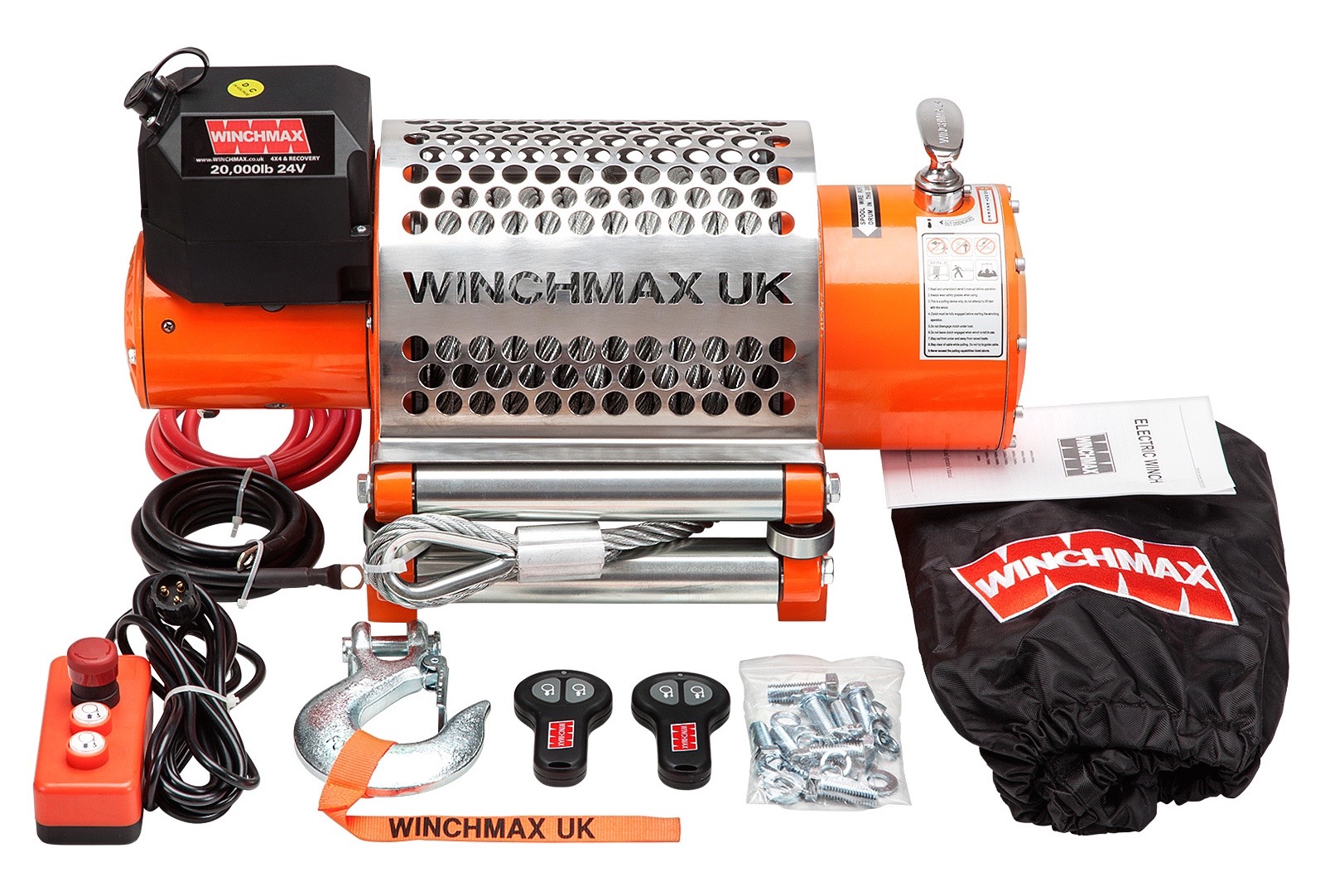

WINCHMAX 24V 20000LB RECOVERY WINCH

AU $1,399.00

WINCHMAX

20,000lb (9,072kg) Heavy Recovery 24v Electric Winch

 Steel Rope, Twin Wireless Remote Control

Integral roller fairlead, no mounting plate required.



Features

• 20,000lb (9,072kg) straight-line pull Z Series 24v electric winch.
• Latest technology long-range wireless remote controls, twin handsets.
• Super powerful 24v 7.0hp/5.2kw series wound electric motor.
• Power in/out handheld control unit - with a large emergency stop button.
• Massive ultra-tough four-stage gearbox with hardened steel gears.
• Motor and gearbox casing machined from billet steel for maximum impact protection.
• 25m x 14mm galvanized steel wire rope.
• New through-drum rope connection with grub screw clamp for ultra-secure rope attachment to drum.
• 1/2 Inch grade 70 forged clevis hook with safety catch, zinc plated for corrosion resistance and hand saver.
• Super heavy-duty four roller fairlead - built into the winch (no mounting plate required).
• Stainless steel perforated drum cover provides enhanced safety whilst still allowing the operator to monitor the rope spooling.
• Sliding ring gear freewheel clutch.
• High tensile fixing bolt kit.
• Strong WINCHMAX branded cover to protect from water and road grime.
• Heavy duty & built to last - gross weight 85kg.
• CE certified & built to ISO9001 quality management system requirements.



Single Line rated pull	20,000lb (9,072kg)
Motor	24v 7.0HP/5.2KW, series wound
Motor Current	75-570A
Control	Remote switch, 4.5m lead, in & out
Gear Train	4 stage planetary
Gear Reduction Ratio	544:1
Clutch	Sliding ring gear
Braking Action	Automatic
Drum Size	Diameter 89mm Length 228.6mm
Drum Finish	Black, painted
Cable	25m x 14mm galvanized steel wire rope
Hook	Clevis hook 1/2 inch
Fairlead	Heavy-duty 4 way roller fairlead
Battery	Recommended: 750CCA Minimum For Winching
Winch Finish	Original Orange powder coated
Weight (GW)	85kg (187lb)
Overall Dimensions (LxWxH)	576 x 302 x 305mm
Mounting Bolt Pattern	10.00” x 4.50” (254 x 114.3mm)
No Load Line Speed	5.1m/min (16.73 ft/min)



Layer Rated	Line pull (lb)	Line Pull (kg)	Total Rope On Drum (ft/m)
1	20,000	9,091	15.62/4.76
2	15,725	7,132	35.43/10.8
3	12,956	5,877	59.55/18.15
4	11,016	5,336	85.30/26



Line Pull (lb/kg)	Line Speed ft/min (m/min)	Motor (Amps)
0 (0)	16.73ft (5.1m)	82A
4,000 (1,814)	8.20ft (2.5m)	128A
8,000 (3,629)	7.22ft (2.2m)	210A
12,000 (5,443)	6.23ft (1.9m)	278A
16,000 (7,257)	4.92ft (1.5m)	365A
20,000 (9,072)	3.6ft (1.1m)	420A





FREIGHT

FREIGHT TO COMMERCIAL ADDRESS OR DEPOT PICK UP

WINCHMAX 13500LB 24V DYNEEMA ROPE RECOVERY WINCH

AU $899.00

 Heavy duty 13500lb recovery winch 24v

• Especially optimised for recovery use.
• Super powerful 24v 6hp series wound electric motor.
• Power In / out removable big grip corded handheld remote control
• Massive Ultra Tough three stage gearbox
• Albright type solenoids
• Sliding Ring Gear
• Free wheel Clutch
• Twin wireless remotes
• Plug in controller wander lead
• CE Certified & Built to ISO9001 Quality Management System Requirements.

  TECHNICAL SPECIFICATIONS

• Single line rated pull - 13500 lb (6123kg)
• Motor - 6.0hp/4.5kw, Series Wound
• Control - Remote Switch, Extra long 4.5m lead , In and Out
• Gear train - 3 Stage Planetary
• Gear reduction ratio - 265:1
• Clutch - Sliding Ring Gear
• Braking Action - Automatic In The Drum
• Drum size - Diameter 64mm Length 224mm
• Cable - 28m X 11mm Dyneema Rope
• Battery - Recommended 650CCA minimum for winching
• Battery Leads - 2 gauge, 1.83m
• Finish - Orange
• Weight- 28 KG
• Overall Dimensions (L x W x H) 536 x 160 x 218mm
• Mounting Bolt Pattern 254 x114.3mm
• Motor Current - 65-400A
• No Load Line Speed - 6.5m / min (21.3 ft/min)



Layer Rated	Line pull (lb)	Line Pull (kg)	Total Rope On Drum (ft/m)
1	13,500	6,123	20.4/6.22
2	10,010	4,540	41/12.0
3	8,840	4,009	71/21.0
4	7,410	3,361	85/24.0



Line Pull (lb/kg)	Line Speed ft/min (m/min)	Motor (Amps)
0 (0)	24.6ft (7.5m)	70A
3,000 (1363)	11.48ft (3.5m)	138A
6,000 (2727)	8.86ft (2.7m)	218A
9,000 (4090)	7.72ft (2.2m)	260A
13,500 (6123)	5.58ft (1.7m)	415A

MIL SPEC ATV 3000 24V ELECTRIC WINCH DYNEEMA ROPE

AU $299.00

3,000LB (1,361KG) MILITARY-GRADE 24V ELECTRIC WINCH

 DYNEEMA ROPE TWIN WIRELESS REMOTE CONTROLS.

Includes mounting plate



Ideal for use on boat trailers, ATVs and light utility vehicles



FEATURES



3,000lb (1,361kg) straight-line pull 24v electric winch.

Military-grade with improved anti-corrosion measures.

·       Latest technology long-range wireless remote controls, twin handsets.

·       Super powerful 24v permanent magnetic electric motor.

·       Ultra-tough three-stage gearbox with hardened steel gears.

·       15.5m x 5mm Dyneema rope

·       New through-drum rope connection with grub screw clamp for ultra-secure rope attachment to drum.

·       1/4 Inch grade 70 forged hook with safety catch, zinc plated for corrosion resistance and hand saver.

·       Fairlead hawse

·       Heavy-duty one-piece solenoid, latest design, ultra-reliable, IP67 waterproof.

·       Power in/out rocker switch complete with 2.5m long connection and handlebar mounting bracket.

·       Free-wheel clutch.

·       Stainless steel crossbars and fixings.

·       Upgraded water seals.

·       High tensile fixing bolt kit.

·       2 x 180cm battery power cables, 2x 90cm motor power cables.

·       Strong WINCHMAX branded cover to protect from water and road grime.

·       Heavy-duty & built to last - gross weight 12kg.

·       CE certified & built to ISO9001 quality management system requirements.



Single Line Rated Pull	3,000lb (1,361kg)
Motor	24v 1.5hp permanent magnetic motor
Control	Remote rocker switch, handlebar mount kit, in and out
Gear Train	3 stage planetary
Gear Reduction Ratio	136:1
Clutch	Cam activated free spool
Braking Action	Automatic in the drum
Drum Size	Diameter 50mm (2.0") Length 75mm (2.9”)
Drum Finish	Aluminium
Cable	15.5m x 5mm Dyneema rope
Hook	Clevis hook 1/4-inch, zinc plated
Fairlead	Hawse
Battery	Recommended 12Ah minimum for winching
Battery Leads	6 gauge, 1.7m 15mmsq - 4.2mm diameter
Finish	Matt black (low light paint)
Weight (GW)	12kg
Dimensions (LxWxH)	339 x 110 x 114 mm
Mounting Bolt Pattern	126 x 76 mm
Motor Current	15-200A
No Load Line Speed	8.3m/min (27.2 ft/min)
Wireless Remote	Long Range Wireless Remote Control x 2



Layer Rated	Line pull (lb)	Line Pull (kg)	Total Rope On Drum (ft/m)
1	3,000	1,361	8.85 (2.7)
2	2,561	1,162	19.22 (5.86)
3	2,234	1,013	31.11 (9.48)
4	1,981	899	44.52 (13.58)
5	1,779	807	50.0 (15.5)



Line Pull (lb/kg)	Line Speed ft/min (m/min)	Motor (Amps)
0 (0)	27ft (8.3m)	10A
500 (227)	20ft (6.1m)	21A
1,000 (454)	16ft (4.9m)	32A
2,000 (907)	9ft (2.7m)	65A
3,000 (1361)	5ft (1.5m)	95A

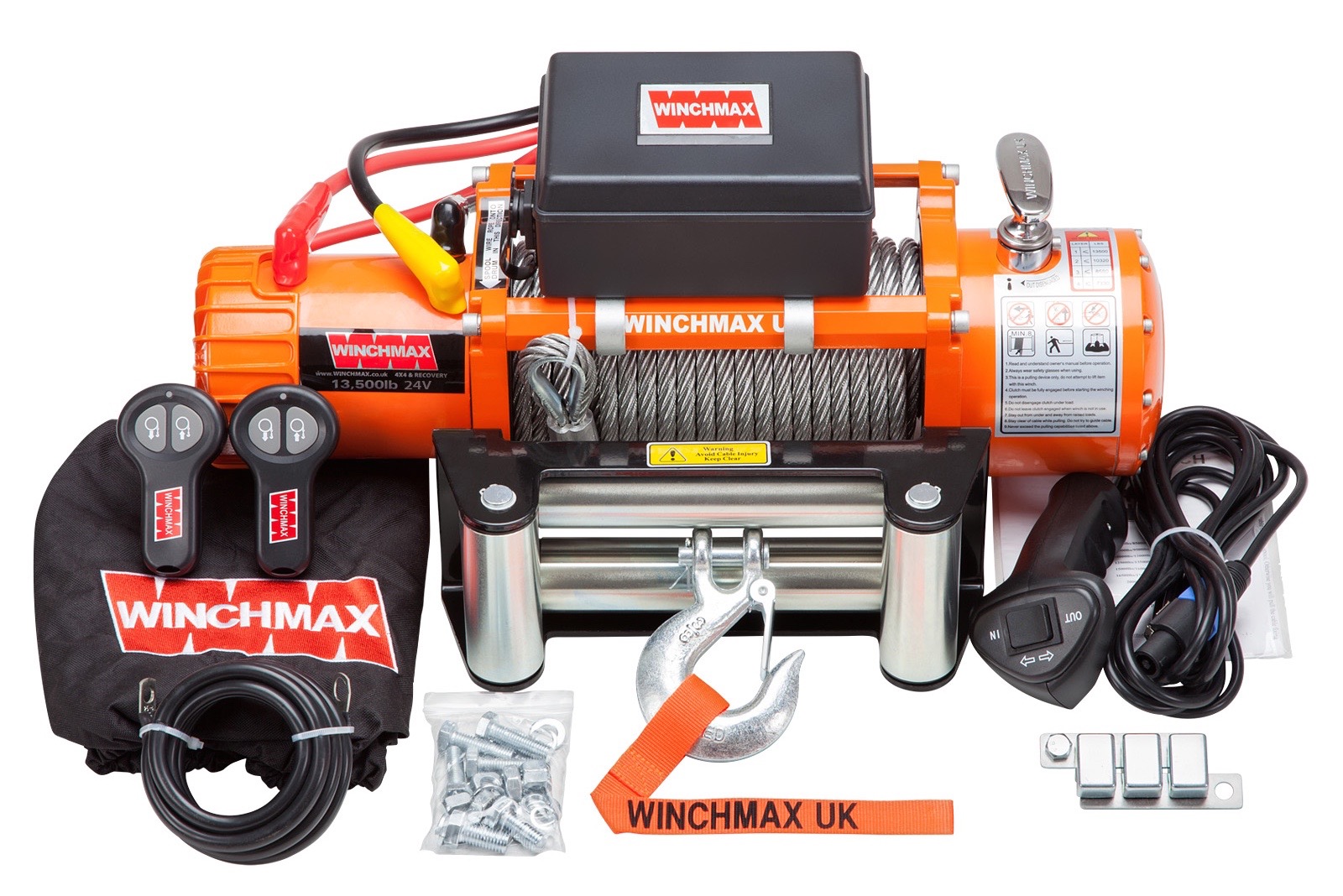

WINCHMAX 24V 13500LB STEEL CABLE RECOVERY WINCH

AU $799.00

Heavy duty 13500lb recovery winch 24v

• Especially optimised for recovery use.
• Super powerful 24v 6hp series wound electric motor.
• Power In / out removable big grip corded handheld remote-control unit
• Massive Ultra Tough three stage gearbox
• Albright type solenoids
• Sliding Ring Gear Free wheel clutch
• Twin wireless remotes
• Plug in controller wander lead
• CE Certified & Built to ISO9001 Quality Management System Requirements.

 TECHNICAL SPECIFICATIONS

• Single line rated pull - 13500 lb (6123kg)
• Motor - 6.0hp/4.5kw, Series Wound
• Control - Remote Switch, Extra-long 4.5m lead In and Out
• Gear train - 3 Stage Planetary
• Gear reduction ratio - 265:1
• Clutch - Sliding Ring Gear
• Braking Action - Automatic In The Drum
• Drum size - Diameter 64mm Length 224mm
• Cable - 26m X 9.5mm Steel cable
• Battery - Recommended 650CCA minimum for winching
• Battery Leads - 2 gauge, 1.83m
• Finish - Orange
• Weight- 40 KG
• Overall Dimensions (L x W x H) 536 x 160 x 218m
• Mounting Bolt Pattern - 254x114.3mm
• Motor Current - 65-400A
• No Load Line Speed - 6.5m/min (21.3 ft/min)



Layer Rated	Line pull (lb)	Line Pull (kg)	Total Rope On Drum (ft/m)
1	13,500	6,123	20.4/6.22
2	10,010	4,540	41/12.0
3	8,840	4,009	71/21.0
4	7,410	3,361	85/24.0



Line Pull (lb/kg)	Line Speed ft/min (m/min)	Motor (Amps)
0 (0)	24.6ft (7.5m)	70A
3,000 (1363)	11.48ft (3.5m)	138A
6,000 (2727)	8.86ft (2.7m)	218A
9,000 (4090)	7.72ft (2.2m)	260A
13,500 (6123)	5.58ft (1.7m)	415A

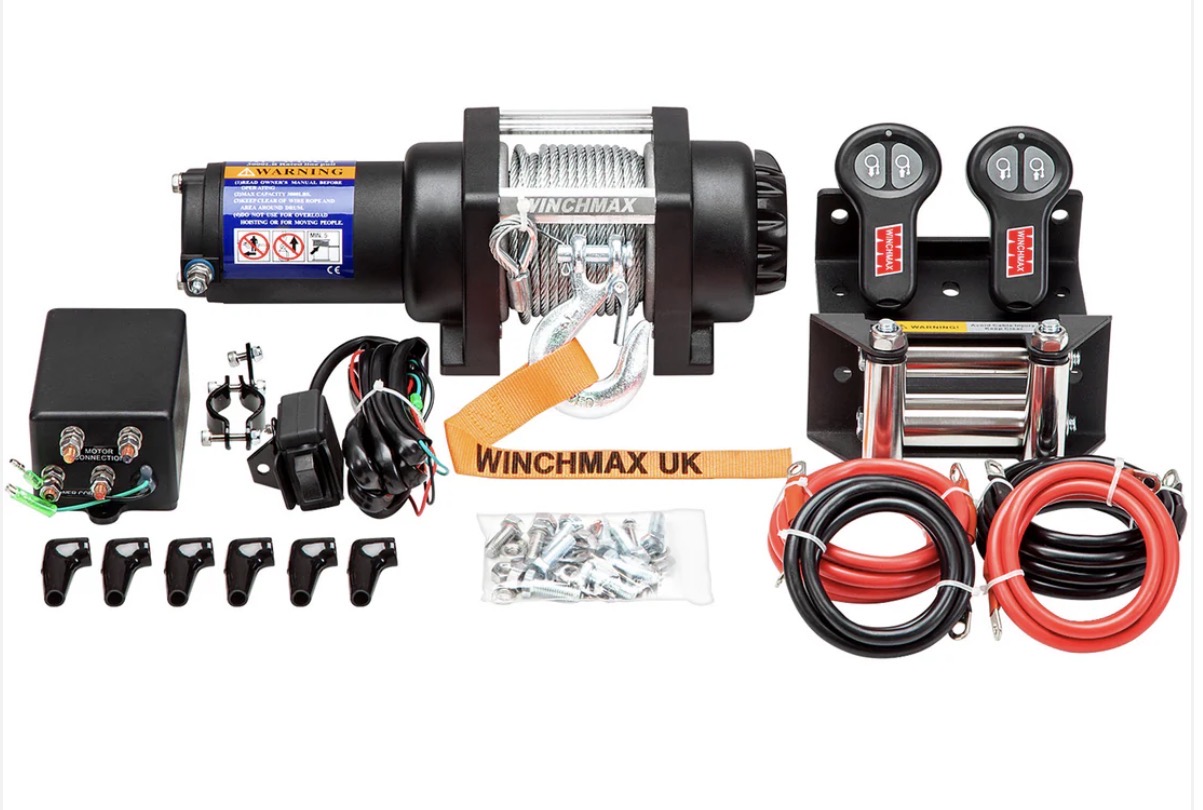

MIL SPEC ATV 3000 24V ELECTRIC WINCH STEEL CABLE

AU $269.00

3,000LB (1,361KG) MILITARY-GRADE 24V ELECTRIC WINCH

 STEEL CABLE TWIN WIRELESS REMOTE CONTROLS.

Includes mounting plate



Ideal for use on boat trailers, ATVs and light utility vehicles



FEATURES



3,000lb (1,361kg) straight-line pull 24v electric winch.

Military-grade with improved anti-corrosion measures.

·       Latest technology long-range wireless remote controls, twin handsets.

·       Super powerful 12v permanent magnetic electric motor.

·       Ultra-tough three-stage gearbox with hardened steel gears.

·       15.5m x 5mm Steel Cable

·       New through-drum rope connection with grub screw clamp for ultra-secure rope attachment to drum.

·       1/4 Inch grade 70 forged hook with safety catch, zinc plated for corrosion resistance and hand saver.

·       Roller Fairlead

·       Heavy-duty one-piece solenoid, latest design, ultra-reliable, IP67 waterproof.

·       Power in/out rocker switch complete with 2.5m long connection and handlebar mounting bracket.

·       Free-wheel clutch.

·       Stainless steel crossbars and fixings.

·       Upgraded water seals.

·       High tensile fixing bolt kit.

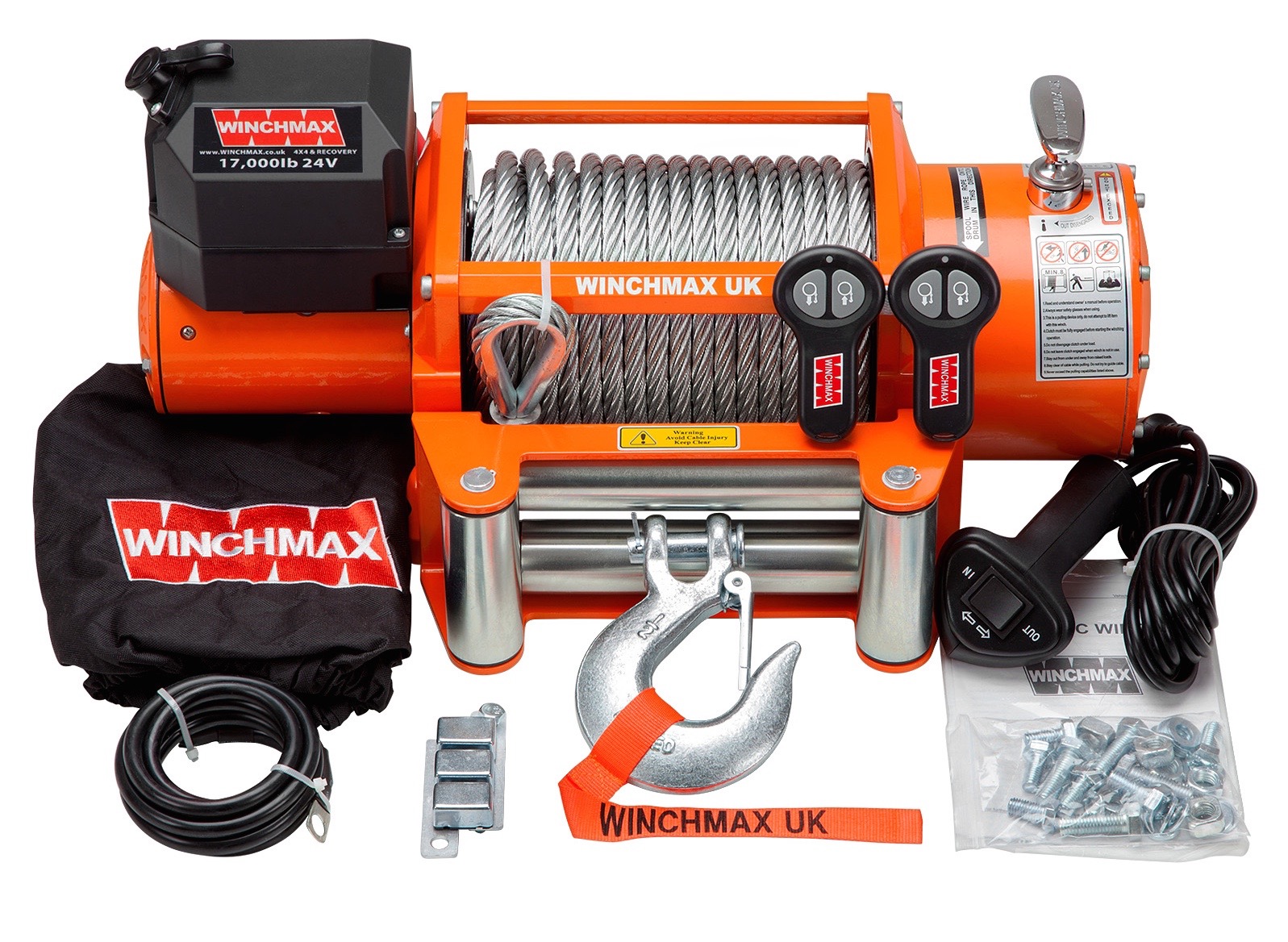

·       2 x 180cm battery power cables, 2x 90cm motor power cables.

·       Strong WINCHMAX branded cover to protect from water and road grime.

·       Heavy-duty & built to last - gross weight 12kg.

·       CE certified & built to ISO9001 quality management system requirements.
